John Deere Release New 6M Range of Tractors

Comfortable power in a compact package

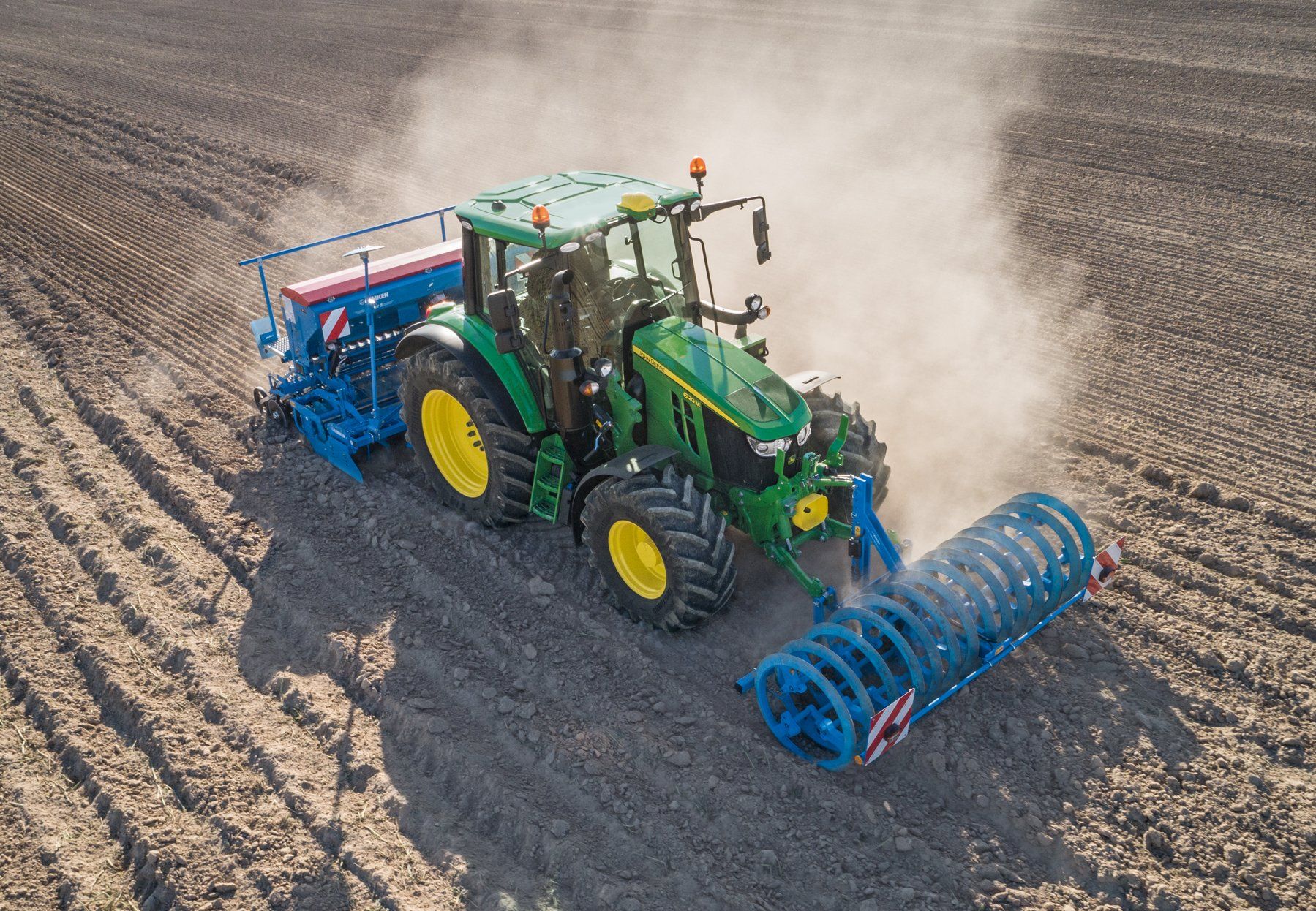

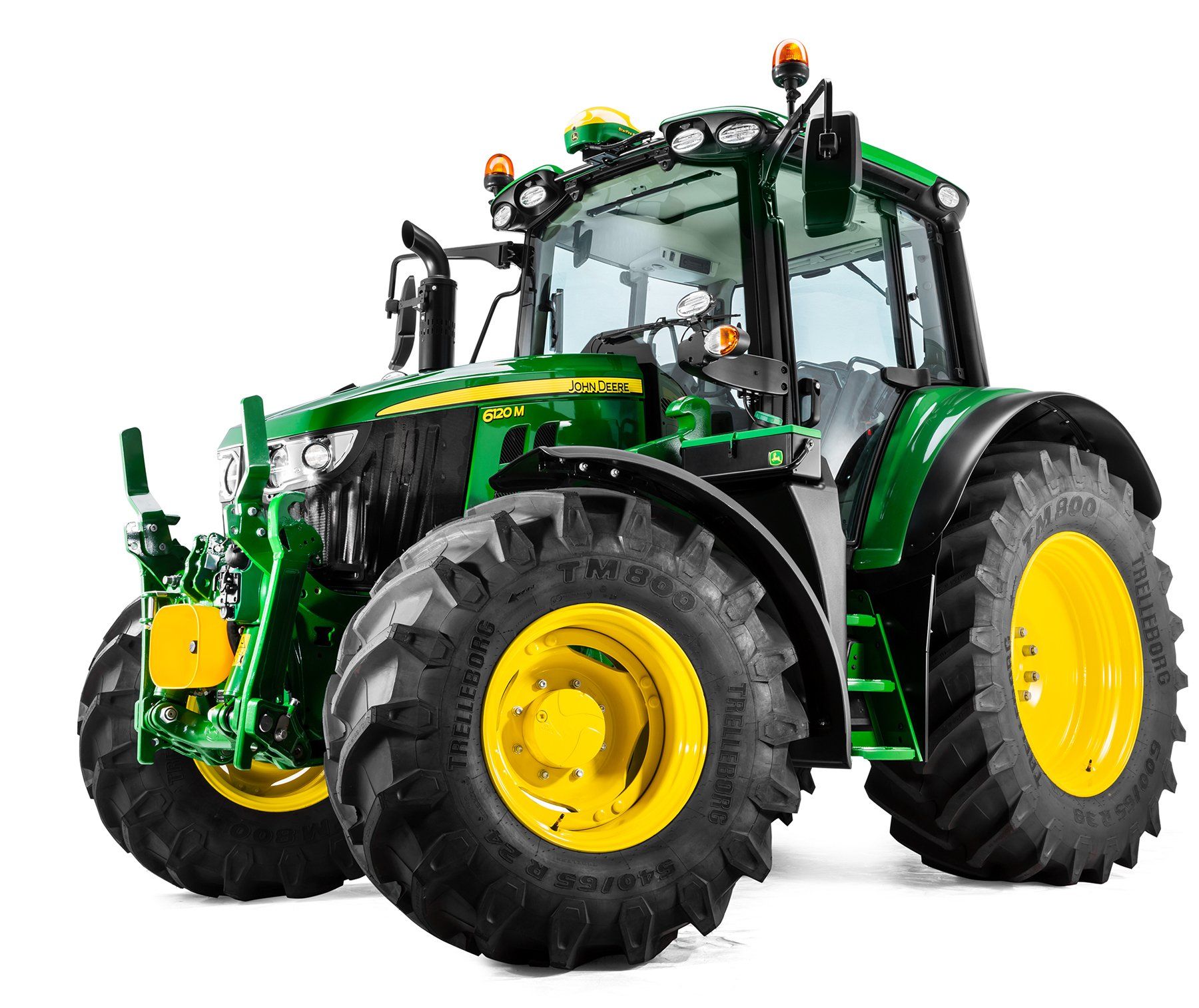

John Deere has developed a completely new 6M series tractor range, with higher standards of comfort, performance, manoeuvrability and visibility.

These replace the previous 6M, 6MC and 6 RC series and include four new four-cylinder models from 90-120hp, featuring a 2.4m wheelbase. This is a more compact 6M series tractor than John Deere has offered before, with the low bonnet design presenting a clear view to the front of the machine. In addition, a slimmer steering wheel cowl and the newly designed panoramic window in the cab roof provides full visibility for loader work or operation in confined spaces.

Improved manoeuvrability is a result of the short wheelbase, which allows a tight turning circle of only 4.35m on the new four-cylinder models. Despite their slim design, these full-frame concept tractors feature a maximum permissible gross weight of 10.45 tonnes, which means unrivalled payload capacity in this class of up to 4.7 tonnes.

All these latest 6M series tractors features a newly designed cab that is significantly brighter and more modern in appearance, as well as extremely quiet, with a rating of 70dB(A). All the important operating functions are located on the right-hand panel, which has been completely redesigned, while models equipped with the CommandQuad transmission can be optionally fitted with a Compact CommandArm, with the functions located on the armrest.

Up to four mechanical or electric SCVs are available - the latter is a new option available for the first time on these tractors. Switches on the electrohydraulic joystick are fully programmable, and direction of travel can be changed on both this and the mechanical joystick via a push-button. Driver comfort is also enhanced by mechanical cab suspension and the proven TLS (Triple Link Suspension) front axle, while 360° LED lighting is optionally available for perfect illumination of night work.

The four new four-cylinder models are powered by a 4.5 litre John Deere PowerTech EWL engine, while the 6130M, 6140M and 6145M have a 4.5 litre John Deere PowerTech PSS engine. Larger models are powered by six-cylinder PVS engines with a displacement of 6.8 litres. The smaller 6090M to 6140M tractors also feature Intelligent Power Management (IPM) for the first time, which increases performance by 20hp for PTO work and transport - so the four cylinder 6140M develops up to an impressive 166hp maximum power with IPM.

Three different gearbox options are offered on the new 6M series. PowrQuad and AutoQuad are four-step powershift transmissions, while the CommandQuad Plus offers fully automatic gear and range shifting without using the clutch. Thanks to EcoShift, the maximum speed of 40kph is achieved at a reduced engine speed of 1590rpm. In addition, AutoClutch means the operator can comfortably stop and restart the tractor simply by using the brake pedal.

The latest AMS and FarmSight solutions include JDLink telematics, which can be ordered ex-factory with a free fiver-year subscription. All the tractors can be equipped with a StarFire 6000 satellite receiver and the 4240 or 4640 GreenStar displays. Depending on the level of precision required when using AutoTrac automatic steering, SF3 and RTK signals as well as the free SF1 option are available.

John Deere's new 6M series tractors can be ordered from dealers as of the end of September 2019, in Select, Select+ and Premium specifications to meet different customer requirements.
