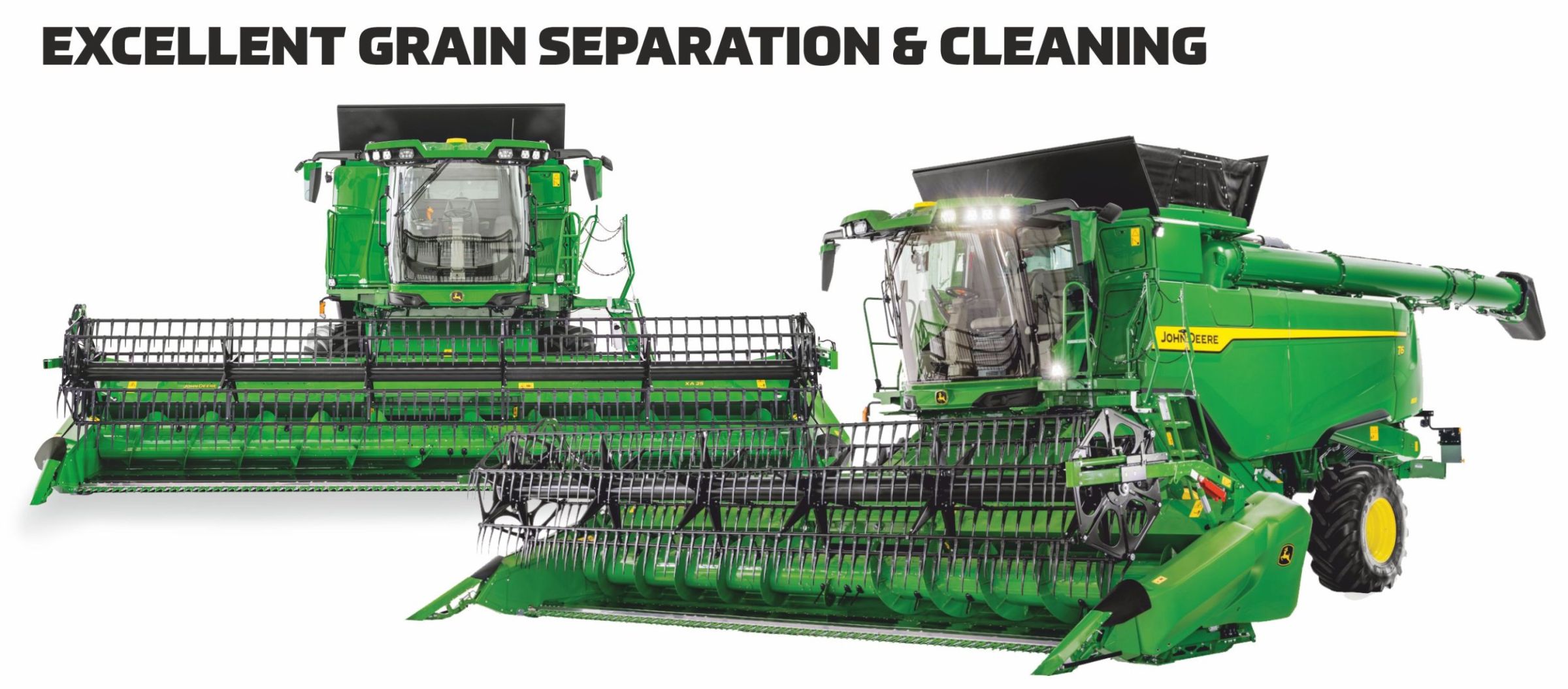

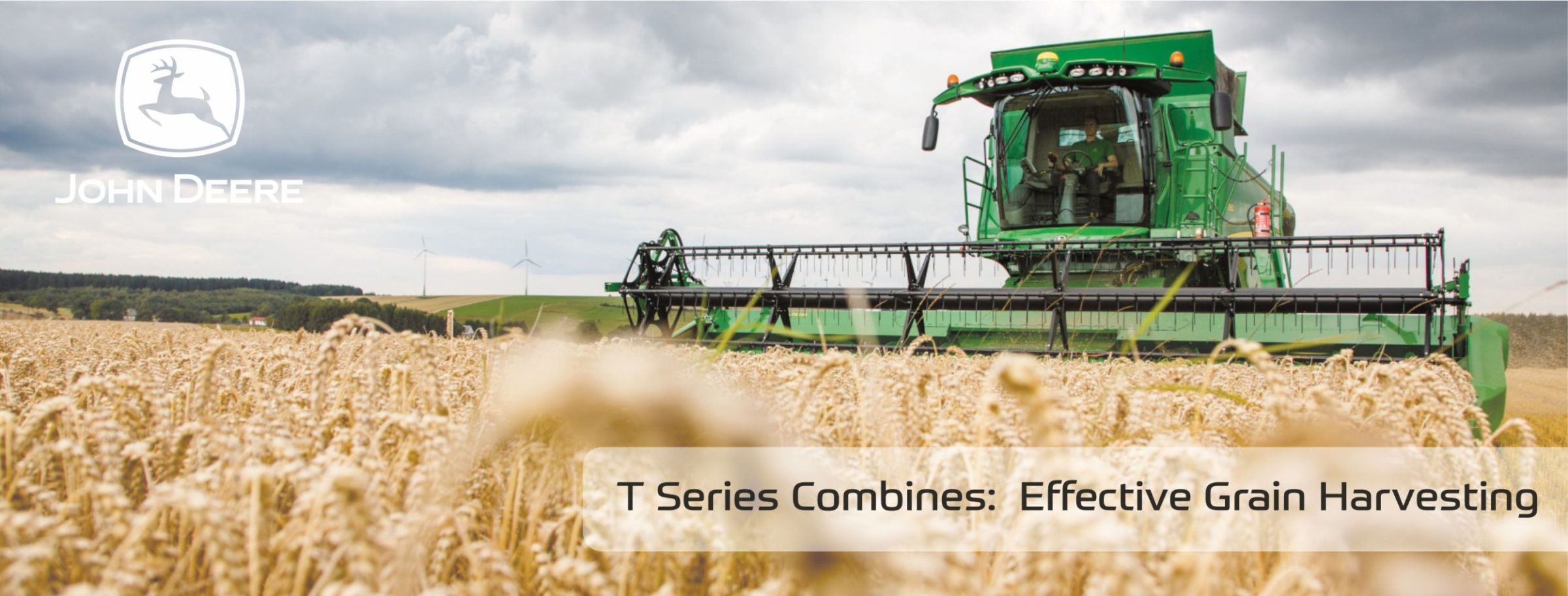

The John Deere T5 and T6 combines feature a straw walker design that is gentle on straw, making them ideal for farmers who bale. They offer excellent grain separation and cleaning, ensuring efficient harvesting performance. With versatile header compatibility, these combines can be used with a variety of attachments, including cutting platforms, pickup headers, and corn heads.
User-friendly technology—such as G5Plus displays, AutoTrac, and Harvest Settings Automation—enhances ease of operation.

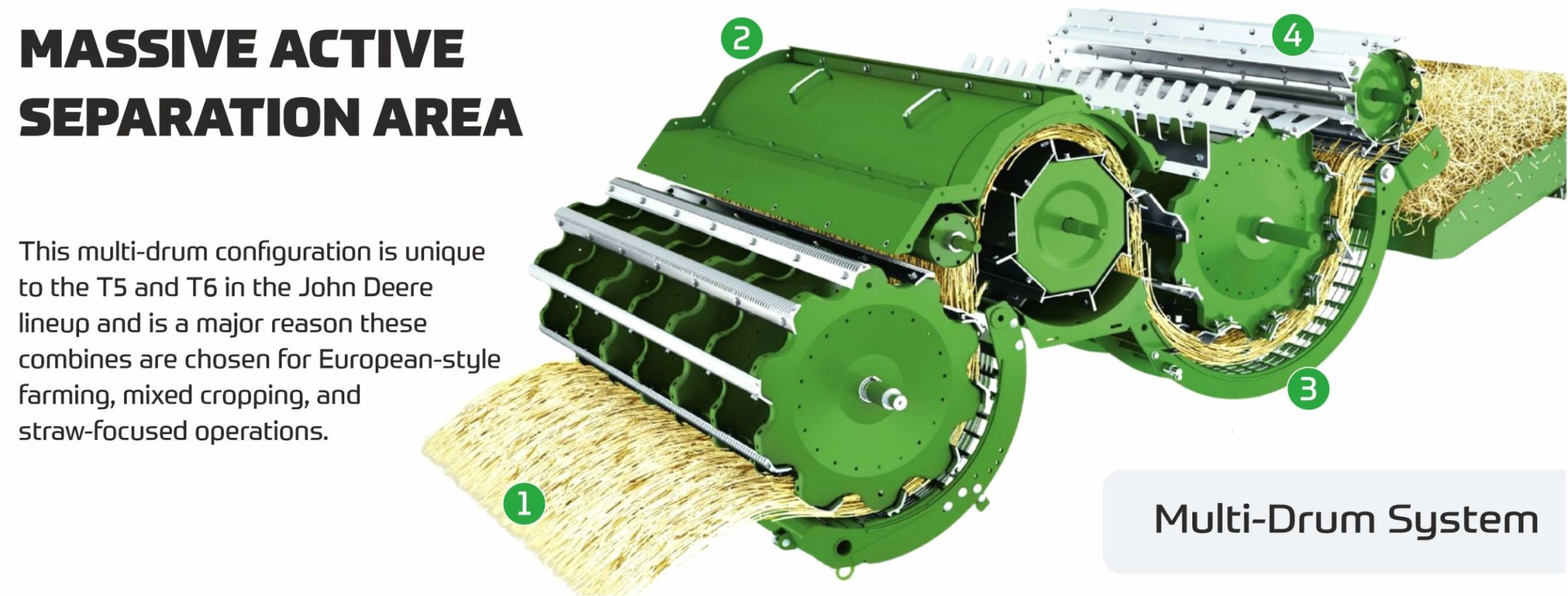

A standout feature of the T-Series is the Multi Drum Threshing and Separation System, a key design difference that distinguishes these combines from other types on the market.
To learn more about the T-Series combine, click here.
POWER & ENGINE
T5 400 starts with a 6.8 L, 305 hp engine.
T5 500|600|700 use a 9 L JD9X engine from 348 to 421 hp.
T6 use JD9X engines, from 348 hp to 466 hp.
WALKER COUNT
T5 models use five straw walkers.
T6 models use six straw walkers.
PERFORMANCE AND THROUGHPUT
T5 700 can handle around 40 t/hour.
T6 800 can reach about 55 t/hour.
Both feature a high-speed unloading system (150 L/s).
GRAIN TANK CAPACITY
T5: 10,000 L standard, option : 11,500 L.
T6: 11,000 L standard, option : 13,500 L.
TERRAIN HANDLING & SLOPE COMPENSATION
Both lines offer side-hill compensation:
7% standard (14% optional)
HillMaster™ system upto 22% tilt on steep terrain.
CAB & CONTROLS
Both use the X9-style cab with CommandPRO™ joystick, ActiveSeat™ II, G5Plus CommandCenter™ touchscreen, dust-sealed door, and LED lighting.
PRECISION TECH FEATURES
Standard integrated StarFire 7500 GPS. MachineSync to coordinate tractor operations, grain sensing (moisture, protein, starch), and optional Extended Display for monitoring multiple functions at once.

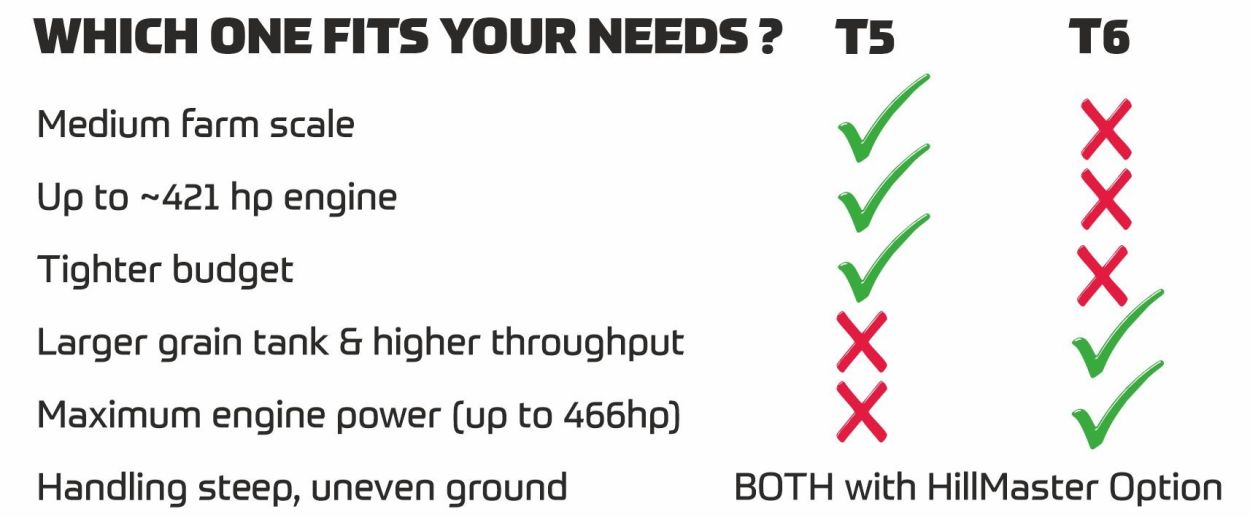

T5 Combine: Designed for medium output harvesting needs. Moderate field sizes, crop variety & flexibility are key.
Used high grain quality is valued to preserve straw for baling.
T6 Combine: Higher performance, built for larger fields or farms requiring more throughput.
Handles higher-yielding crops and heavier loads more efficiently.
1. POWERFUL THRESHING
The 660 mm threshing drum features 10 rasp bars and a 124° long concave, keeping four bars engaged at all times to form a thin, even crop mat. This design reduces grain damage and protects straw quality, while its open structure draws in dust instead of pushing it through the feederhouse—helping maintain a consistently clear forward view.
2. GENTLE PRE-SEPARATION
As the crop leaves the threshing concave, it expands as the gap widens between the overshot beater drum and the combine housing, initiating the separation process. Notably, the crop flows over the top of the beater rather than underneath it—a design that helps preserve straw quality while also reducing power consumption.
3. HIGH VOLUME ACTIVE SEPARATION
At the core of the T5 and T6 combines is the patented Tangential Plus separator concave, featuring an oversized 800 mm separating drum with a wide wrap angle and finger design that creates a ‘combing effect’ to enhance crop separation. The larger concave-to-drum gap allows for greater crop volume, making it especially effective in heavy conditions. Combined with round wires and large openings, this design improves crop flow and boosts kernel separation.
4. SECONDARY SEPARATION
As the crop exits the Tangential Plus concave, it is pulled onto the straw walkers by the rear discharge beater, which also delivers a secondary separating action via its own mini concave. For greater efficiency, the straw walkers operate at a lower frequency of 150 rpm with a 150 mm throw. Their high-step design supports a passive separation process, keeping the crop on the walkers longer to extract the final grains effectively.

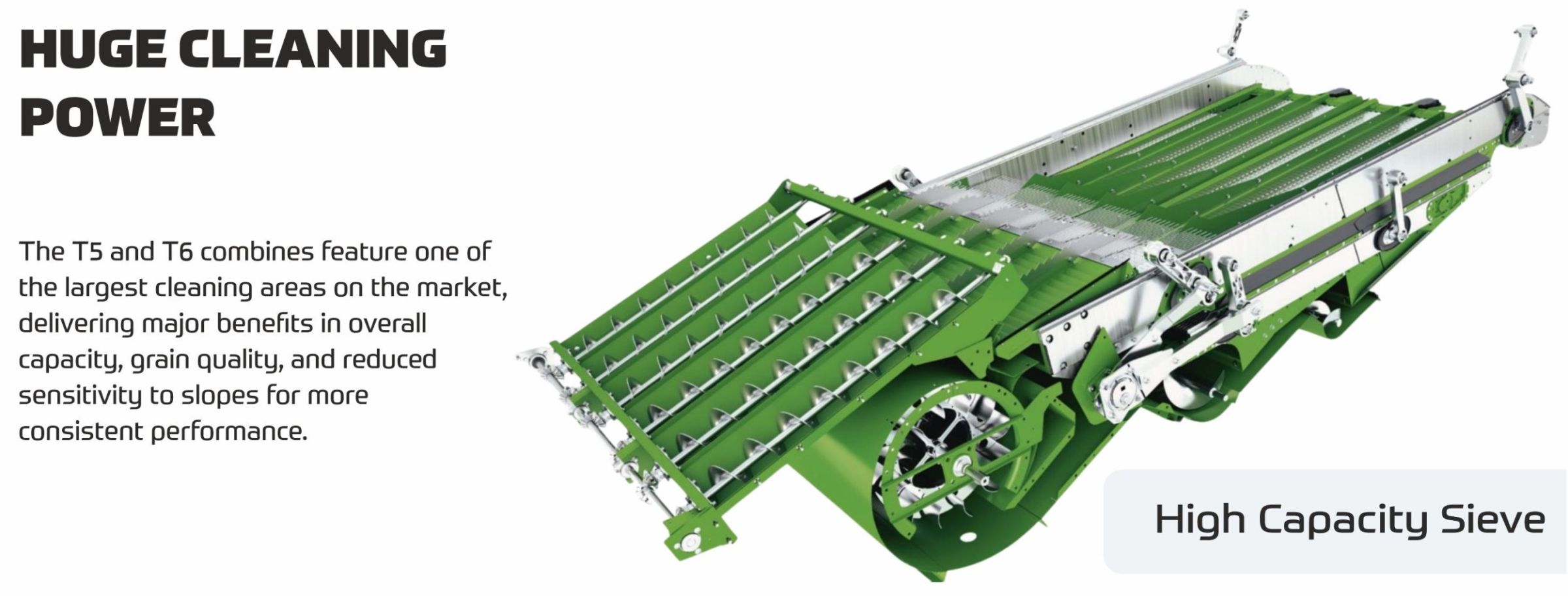

MASSIVE CLEANING AREA
Thanks to an innovative, lightweight design, the T5 and T6 combines deliver a large cleaning area in a compact package. High-performance aircraft-grade aluminium is used extensively to reduce weight while maintaining the sieve’s structural rigidity. As a result, the 5-walker models offer a total sieve area of 4.70 m², while the 6-walker models provide 5.50 m².
INDEPENDENT SLOPE DESIGN
Six heavy-duty conveyor augers ensure consistent crop flow, even on slopes, and perform reliably in damp or sticky conditions. Combined with a powerful 740 m³/min airflow from the fan and the large sieve area, this design eliminates the need for traditional slope compensation features.
HANDLES HIGH YIELDS
In addition to the large cleaning shoe area, returns are fed back to the main threshing drum and evenly distributed across its full width by an auger. The volume of returned material is displayed in the cab and can also be inspected manually via a convenient flap located just outside the cab door.
EASY TO OPTIMISE
The whole cleaning system requires very little adjustment, so even inexperienced operators can still deliver an excellent grain tank sample with low losses. It also means operators don’t have to keep making adjustments when conditions are changing and can focus on other harvest operations.
HIGHLY EFFECTIVE PRE-CLEANING.
The crop drops 41 cm onto two ventilated steps that provide effective pre-cleaning of the chaff. This process helps prevent system overload in heavy crops and ensures even distribution of material across the front and rear of the chaffer, optimizing use of the entire cleaning area.
Enjoy panoramic views, smart design, and first-class comfort - inspired by the award-winning X9 experience. Inside, you’ll find a spacious 3.68 m³ cab, a large 25.5 L fridge, and multiple 12V/USB charging points to keep your essentials powered.
Thanks to slim cab pillars and wide glass surfaces, your view stretches from the feederhouse to the tip of the unloading auger.
In the T Series, comfort is standard.
DUST-SEALING DOORS
As the door closes, an electric motor pulls it tight for a perfect seal. The pressurised cab keeps out dust and blows debris away when the door opens.
LARGE FRIDGE
No more relying on pre-chilled food. The built-in fridge cools warm items, just like your fridge at home.
SMARTPHONE INTEGRATION
Use Apple CarPlay or Android Auto to make calls, send messages, stream music, or talk to your voice assistant — all hands-free.
QUALITY INFOTAINMENT
Connect your phone via Bluetooth to stream music, listen to the radio, or make hands-free calls - all with crystal-clear sound in the quiet S7 cab.
USEFUL STORAGE
Plenty of smart storage spots around the cab - in the armrest, behind the seat, and more - plus cup holders for drinks and bottles.
CONVENIENT POWER
Charge your devices easily with multiple 12V and USB ports - no need for extra adapters.
COMFORTABLE ACTIVE SUSPENSION
The advanced ActiveSeat™ II smooths out rough ground by absorbing up to 90% of vertical movement - giving you a more relaxed ride.
PERFECT BODY SUPPORT
Side bolsters adjust to your shape for better comfort and support. Taller operators can also extend the seat base for extra leg room.
FULLY ADJUSTABLE
The seat swivels for easier access and better visibility, and electric controls let you fine-tune your comfort.
ALL-ROUND COOLING OR HEATING
Perforated leather allows air to flow through the seat - keeping you cool in summer and warm in winter.
MASSAGE EVERY DAY
The seat offers built-in back massages to reduce fatigue and stress, so you stay alert and comfortable all day long.

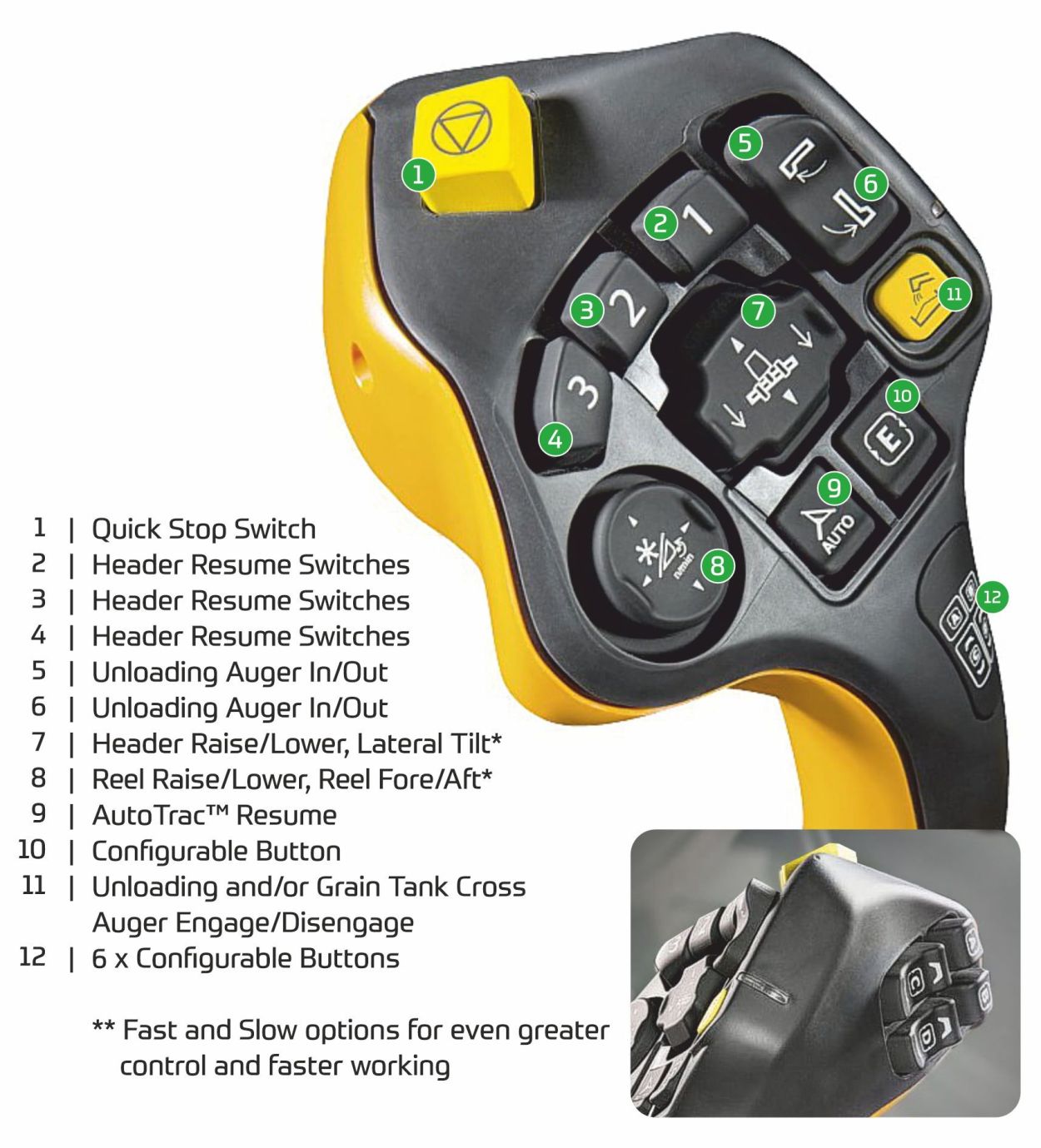

CUSTOMISABLE CONTROL, EASY TO PROGRAM, EASY TO USE.
Whether it's one driver or many, everyone can set up the CommandPRO™ exactly as they like it.
Save individual preferences and reload them in seconds using the touchscreen display.
Adjust key settings like the draper belt speed, reel height, unloading auger folding, chopping spread direction, feederhouse tilt and much more.
Designed with comfort and control in mind, the CommandPRO™ fits naturally in your hand.
Inspired by game controllers and shaped by customer feedback, it gives you precise, fingertip control and a wide range of programmable buttons.
You don't just operate the T-Series, it moves with you.

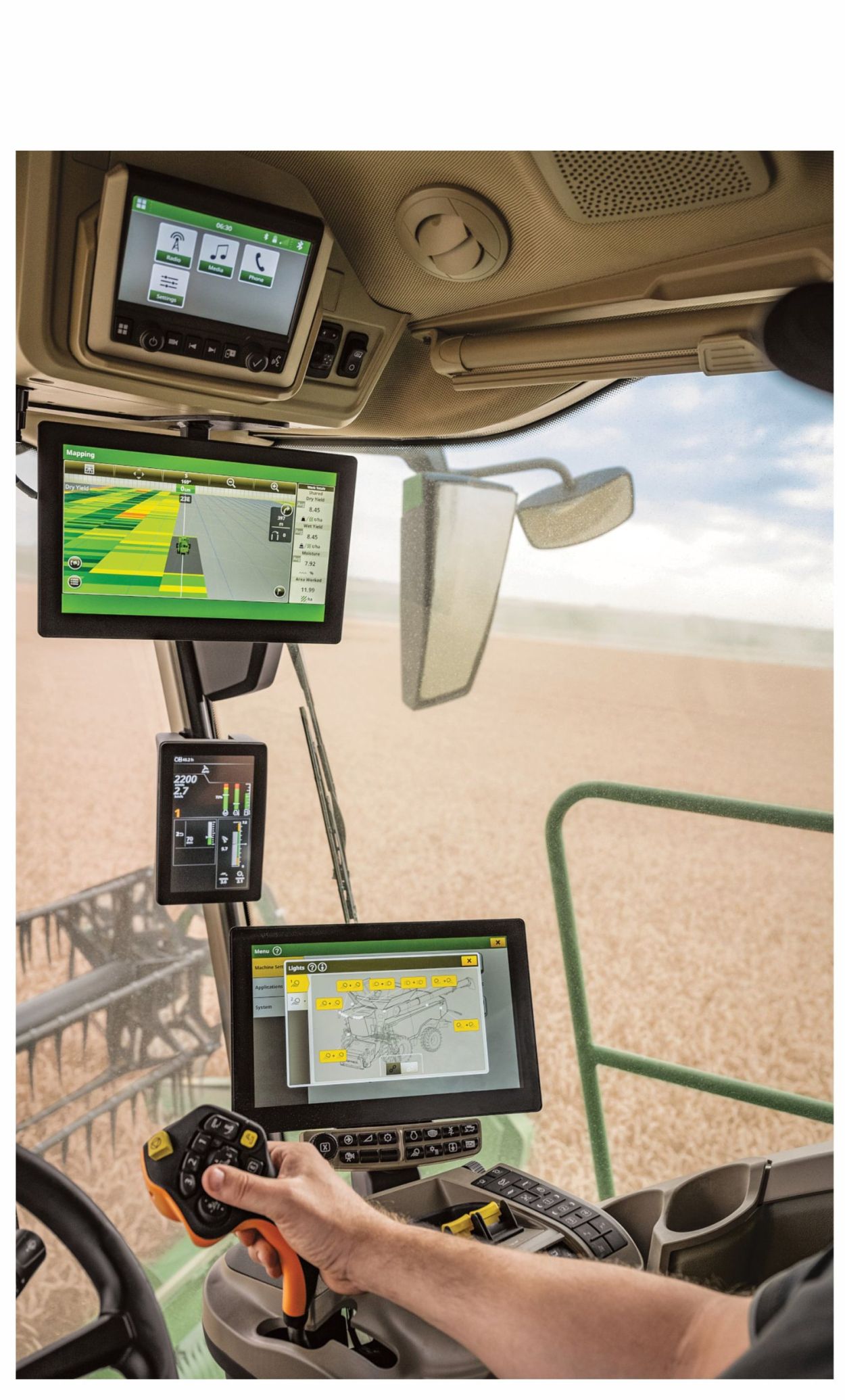

INTUITIVE DISPLAYS: G5Plus CommandCenter™
Think bigger and faster - the G5Plus CommandCenter™ is our largest display ever & comes standard on all S7 combines.
With a 12.8" full HD screen and a 75% faster processor, it boots up quickly and keeps everything running smoothly.
Designed for simplicity, the system makes it easy for any operator to learn the controls, access automation tools, and manage key functions with confidence.
EVEN MORE SCREEN SPACE
The optional G5Plus Extended Monitor, doubles your screen area. Monitor vehicle controls on one screen, Precision Ag functions on the other - perfect for multitasking and staying in control.
Navigation is intuitive, with a clean menu layout, drag-and-drop customisation, and a shortcut bar for quick actions like recording an AB line. It works just like a smartphone, making setup and adjustments simple.
QUICK SET-UP
The Settings Manager lets you save and reload job-specific settings - like rotor speed or concave clearance - so you can get back to work faster.
INTEGRATED CAMERAS
View up to four camera feeds directly on the display. They can activate automatically when needed - e.g. showing the auger view while unloading.
7 MINUTE CROP CONVERSION
Many combines use universal concaves to handle multiple crops. While convenient, this can lead to more crop loss and slower harvesting in tough conditions, since changing concaves takes time and effort.
However, research shows that switching from a universal concave to a small grain concave in difficult threshing conditions can improve performance by up to 12%.
That’s why we designed the T5 and T6 for fast and easy crop conversion—so you get top performance in hard-to-thresh crops like barley.

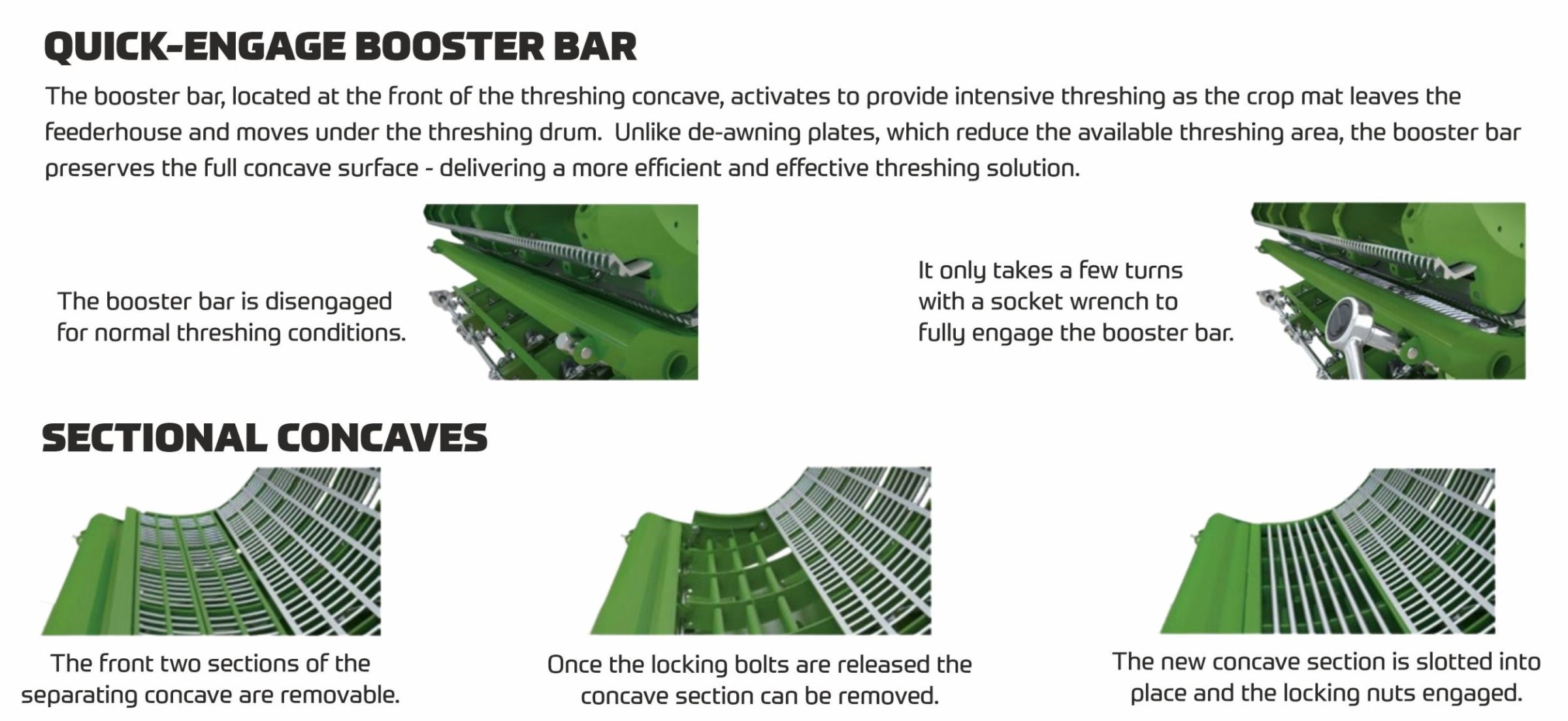

The main threshing concave features two removable sections that can be fitted with three types of concaves: small grain, universal, and round bar.
-
Universal concaves are ideal for easy-to-thresh crops that require more separation.
-
Round bar inserts help reduce kernel damage in crops like corn, beans, and sunflowers.
With a bit of practice, you can swap these inserts in under 7 minutes through the stone trap. Spare concave sections are conveniently stored underneath the combine for quick changes in the field.
A spindle on the right side of the concave lets you slide the drawer from the working to the open position. From there, you can easily remove the current inserts or install new ones—then simply lower the drawer back into place.

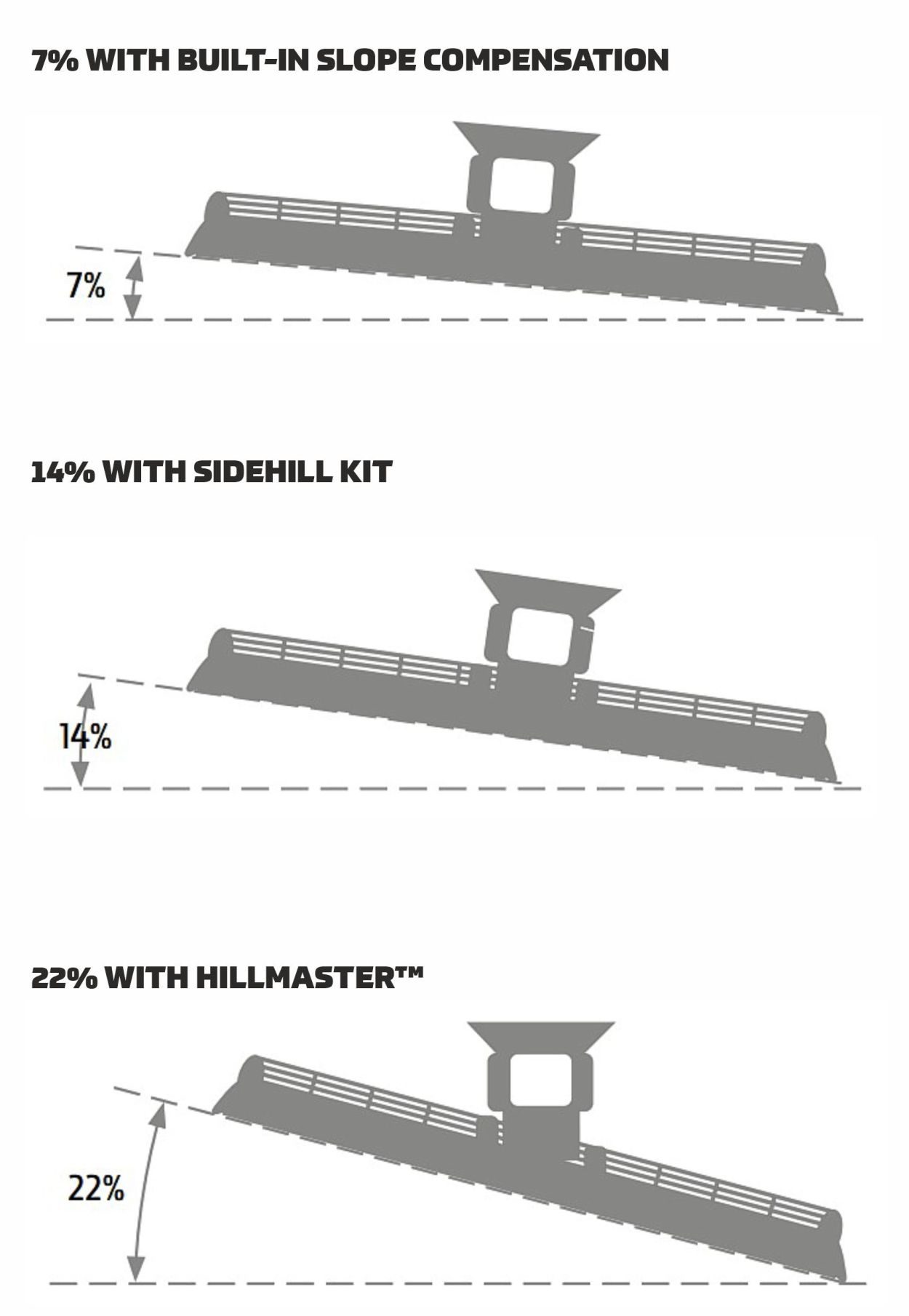

SIDEHILLS
SIDEHILL KIT
The T5 and T6 are fitted with augers that move grain to the cleaning shoe. These augers are slope-independent, ensuring the grain is evenly distributed across the chaffer—even on steep terrain.
A factory-installed sidehill kit provides up to 14% slope compensation for the cleaning system.
High dividers on the chaffer prevent grain from sliding to one side as it moves through the sieve. Rubber flaps on each side of the dividers work like pinball paddles, constantly flicking grain uphill to prevent buildup and maintain an even load on the cleaning shoe.

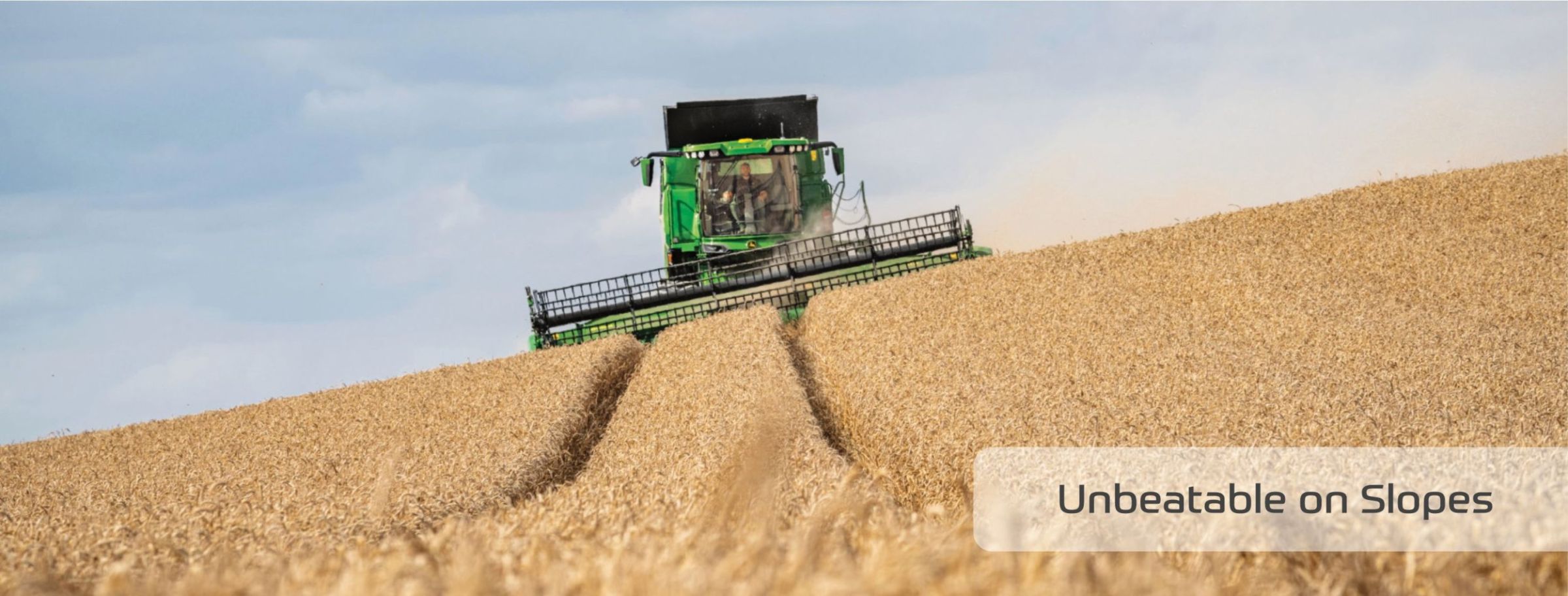

HILLMASTER™
The Hillmaster™ system uses hydraulics to level the entire combine by up to 15%, helping it perform as if it's on flat ground—even on slopes. By evenly distributing the machine’s weight, Hillmaster™ reduces stress on the downhill wheels, providing better grip in unstable or wet soil conditions.
When combined with the built-in cleaning system slope compensation, the total slope adjustment reaches up to 22%.
In addition to improving operator comfort, Hillmaster™ keeps the grain tank level—allowing you to fill it completely before needing to unload.

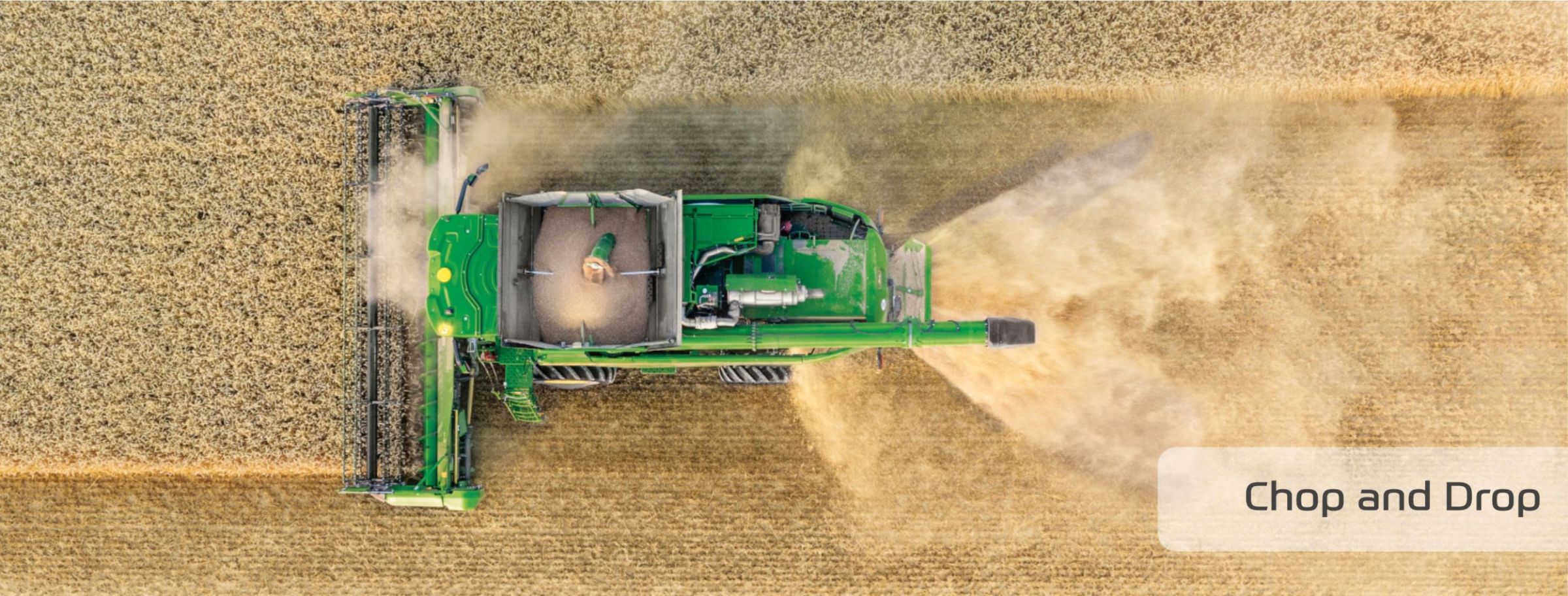

ADJUSTABLE CHOPPING INTENSITY
You can adjust the counter knives directly from the cab to fine-tune chopping intensity and fuel efficiency based on current crop and tillage conditions. They can also be manually adjusted without the use of tools. For tougher conditions, an optional grouser bar can be installed behind the counter knives to boost chopping intensity, and it too can be adjusted without tools.

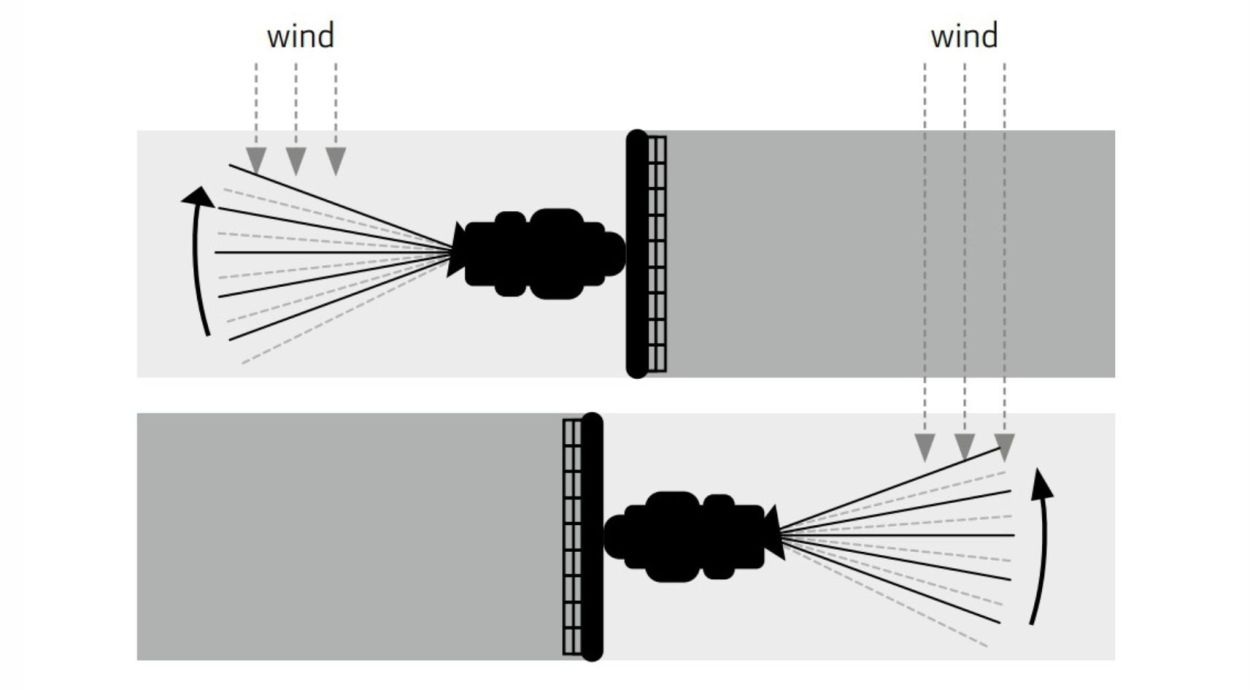

AUTOMATIC WIND COMPENSATION
AutoSwap automatically adjusts the tailboard’s spreading direction to counteract side winds using GPS data.
This eliminates the need to press the swap button at the headland and removes the risk of forgetting to change direction and operating with incorrect settings.
AutoSwap comes standard on residue systems with electric vane tailboards.
SUPER STRAW QUALITY
The T5 and T6 deliver up to 15% more straw than other combines, thanks to their ‘over-the-top’ multidrum separating system. With no abrupt changes in crop direction through the threshing and separating drums, stem damage is minimized. Before leaving the combine, the crop passes over high-stepped walkers for the final separation stage, fluffing it to create tall, open windrows ideal for high-quality bales. A chaff spreader ensures cleaner straw with no chaff content. Switching between chopping and dropping takes just 30 seconds.
DENSER BALES
Longer straw lengths result in tighter, better-formed bales with greater density. This added density offers multiple benefits - reducing the number of bales that need to be handled, lowering transport and storage requirements, and helping to preserve the straw’s structure and quality for an extended period.
For operators, this means greater efficiency in the field and improved bale quality in storage or at point of use. It’s one of the reasons why the T5 and T6 stand out as the logical choice for those who demand high-volume throughput while still maintaining exceptional straw quality.

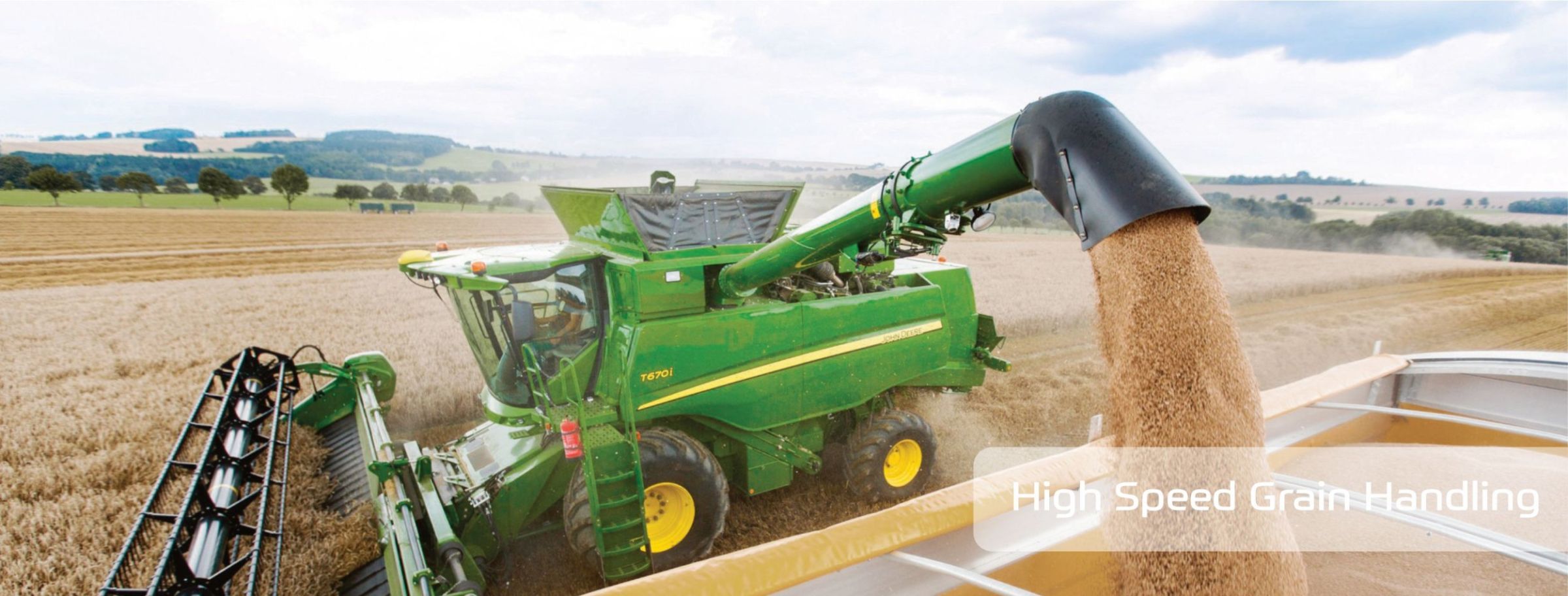

THERE'S NO STOPPING YOU
With a massive 13,500 L grain tank paired with a high-capacity 150 L/s unloading rate, harvesting interruptions are kept to a minimum.
You can unload 11 tonnes of grain in just 90 seconds, keeping your harvest moving at full pace.
BUILT TOUGH
The heavy-duty, belt-driven grain handling system is engineered to perform reliably in both high-yield crops and wet conditions. A toolless cross auger cover plate adjustment in the grain tank allows you to fine-tune the load rate for different crops and conditions, giving you maximum versatility in the field.
UNLOAD IN A FLASH
The engine’s electronic management system delivers an impressive power boost of up to 25 kW (34 PS) during unloading, ensuring the process is fast and efficient so you can get straight back to harvesting.
GENTLE GRAIN HANDLING
A large-diameter auger minimizes grain-on-steel contact, reducing kernel damage and helping you secure better market prices with cleaner, higher-quality grain.
KEY POINTS
GRAIN TANK : 13,500 L UNLOADING: 150 L/S EXTRA LOADING POWER : 34 PS
